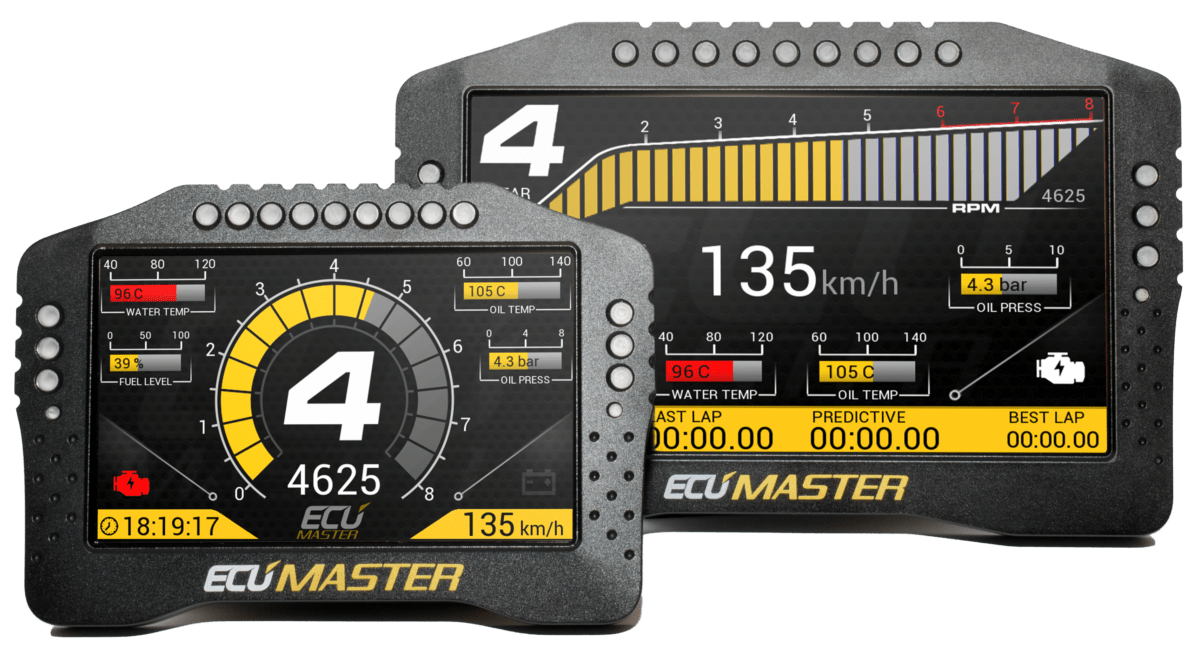

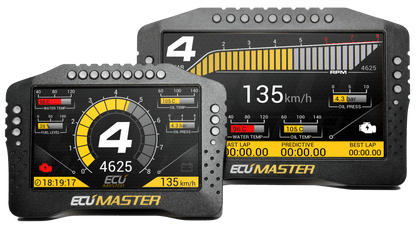

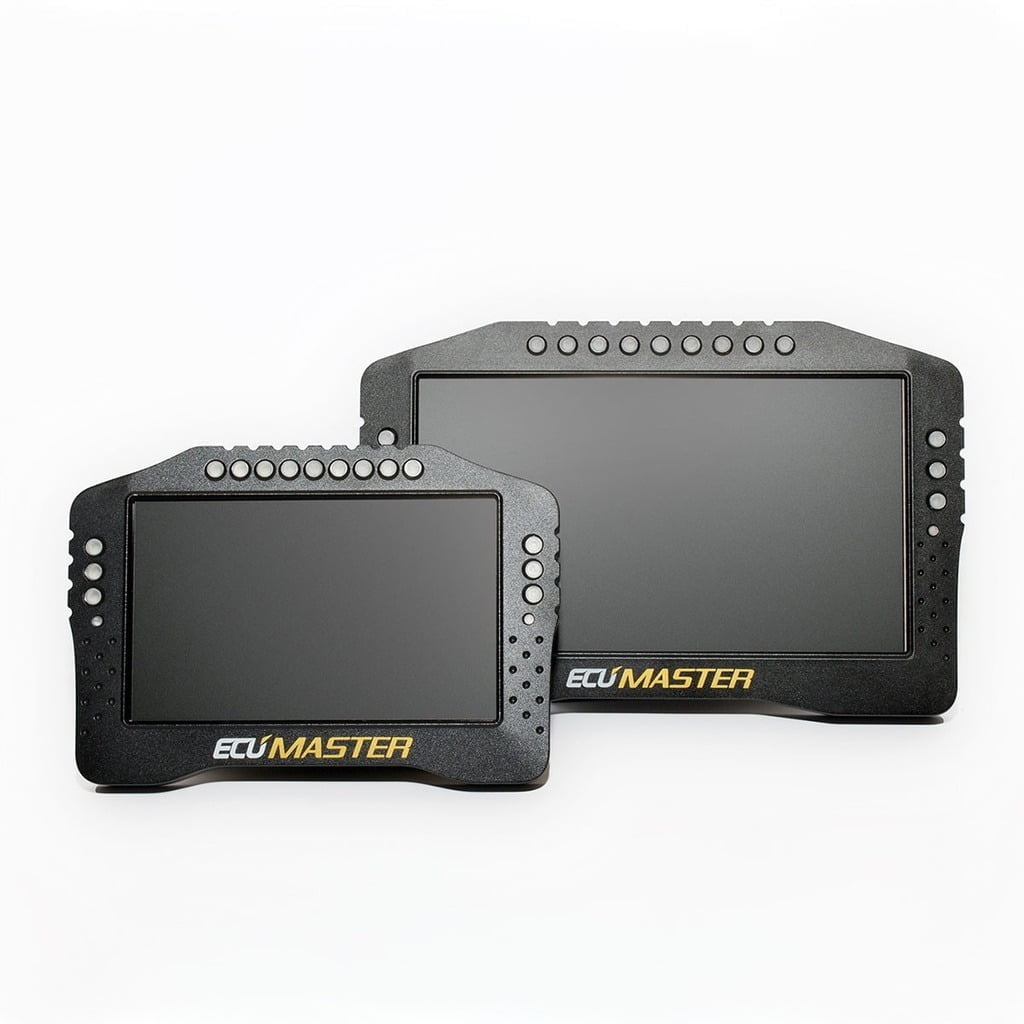

ECUMaster - ADU 5 Inch - Advanced Display Unit

Bestelbaar — niet direct op voorraad
€1.098,99
€1.098,99
Inclusief btw. Verzendkosten worden berekend bij de checkout.
  • Snelle Levering
  • Pas garantie
    (of universeel)
  • Vragen?
    0487 700 216

Specificaties

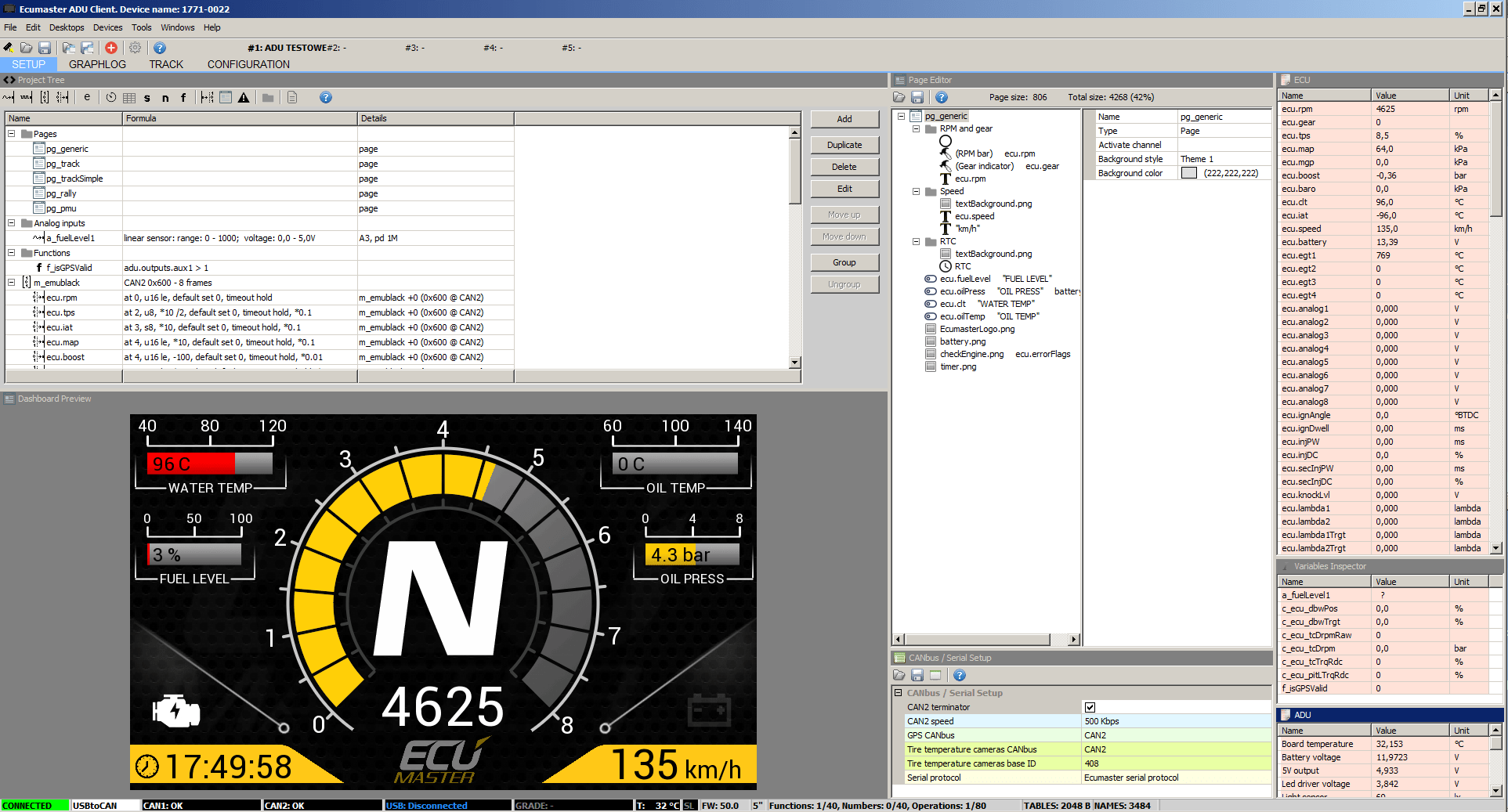

De ADU is volledig naar eigen wens te programmeren.

Aansluitmogelijkheden:

  • 2x Canbus
  • 1x Serieel
  • 8x digitale input
  • 8x analoge input

G-sensor, Gyroscoop, temperatuur, licht sensoren ingebouwd.

Klik hier voor de handleiding

SPECIFICATION

GENERAL
Temperature range AECQ100 GRADE3 (-40 to +85˚C)
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure Rev.1 ->IP 60, custom CNC machined aluminum

Rev.2 ->IP 65, custom CNC machined aluminum (sealed)

ADU7″ AS ->IP 60, custom CNC machined aluminum
Connectors 1 x 35 positions, AMP Automotive connector
PC communication CAN BUS – Ecumaster interface, Peak or Kvaser

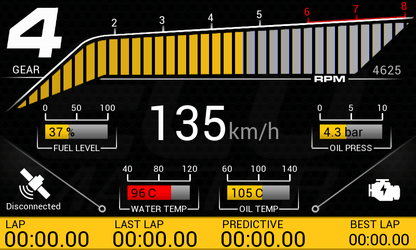

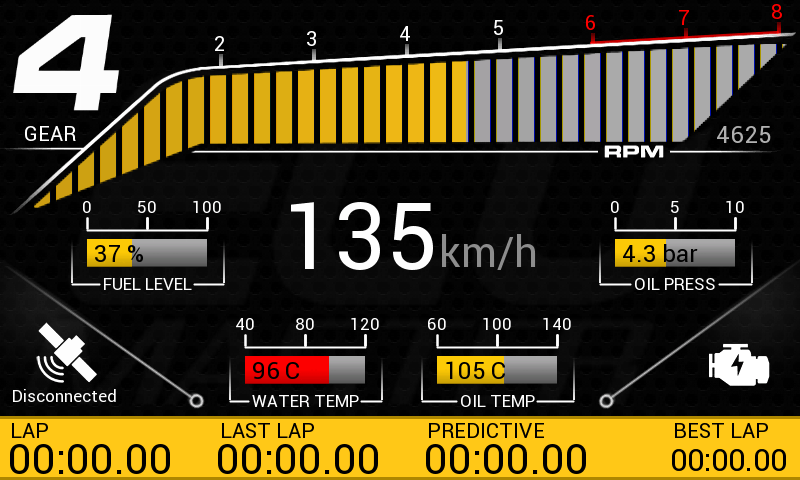

Display Type TFT 800×480
Brightness of display 5″ – 600 cd/m2, 7″ – 1000 cd/m2

INPUTS / OUTPUTS
Analogue inputs 8 inputs, 10 bits, 0-5 V, software controlled pull-up/pull-down 10K resistor. All analogue inputs can be used as a switches
Digital inputs 8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches
Outputs 2 low side outputs (switch to ground), up to 2A, 1 analogue output (0-5V) 10 bits
+5V Output Monitored 5V output for powering external sensors

COMMUNICATION
CAN Interface 2 x CAN2.0 A/B, 250, 500, 1000 Kbps
CAN streams User-defined
Serial communication RS232 Rx/Tx, AiM protocols, Ecumaster, Hondata Kpro, Autronic

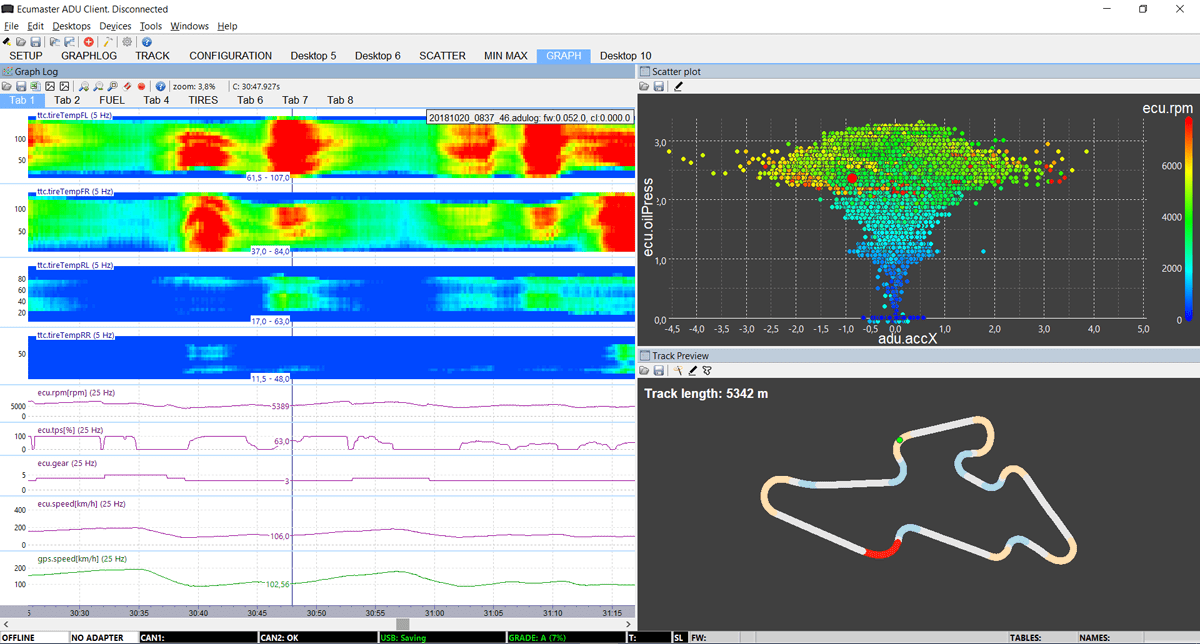

USB Used for logging to external USB memory

OTHERS
Light Emitting Diodes 15 ultra bright RGB LEDs
Accelerometer/gyroscope 3D accelerometer + 3D gyroscope for the analysis of vehicle dynamics
Real-time clock Yes, battery powered
Light sensor Yes, for automatic correction of brightness
Temperature sensor Yes, for monitoring device temperature
