Energy Suspension Complete Poly Bush Kit Mazda MX-5 NA NB

Energy Suspension Complete Poly Bush Kit for Mazda MX-5 NA NB

Rubber softens over time, reducing its ability to hold your suspension components firmly in place. This means that when your wheels hits the road, the once meticulously aligned suspension is able to flex, moving your geometry along with it. By replacing your tired rubber bushes with uprated polyurethane, your suspension keeps its alignment better, making your car handle more positively and predictably.

Moreover, the design of these bushings is more akin to a bearing, allowing the arm to move freely up and down while being solidly located within the arm. This allows the suspension to do its job rather than the control arm bush acting as a damper in motion. Highly recommended by BOFI Racing to ensure predictable, repeatable handling characteristics, giving you an even better feel in the hand than when the car was new.

Fitting Notes; Anti Roll Bar bushes are suitable for an NA and may be too small / large for NB.

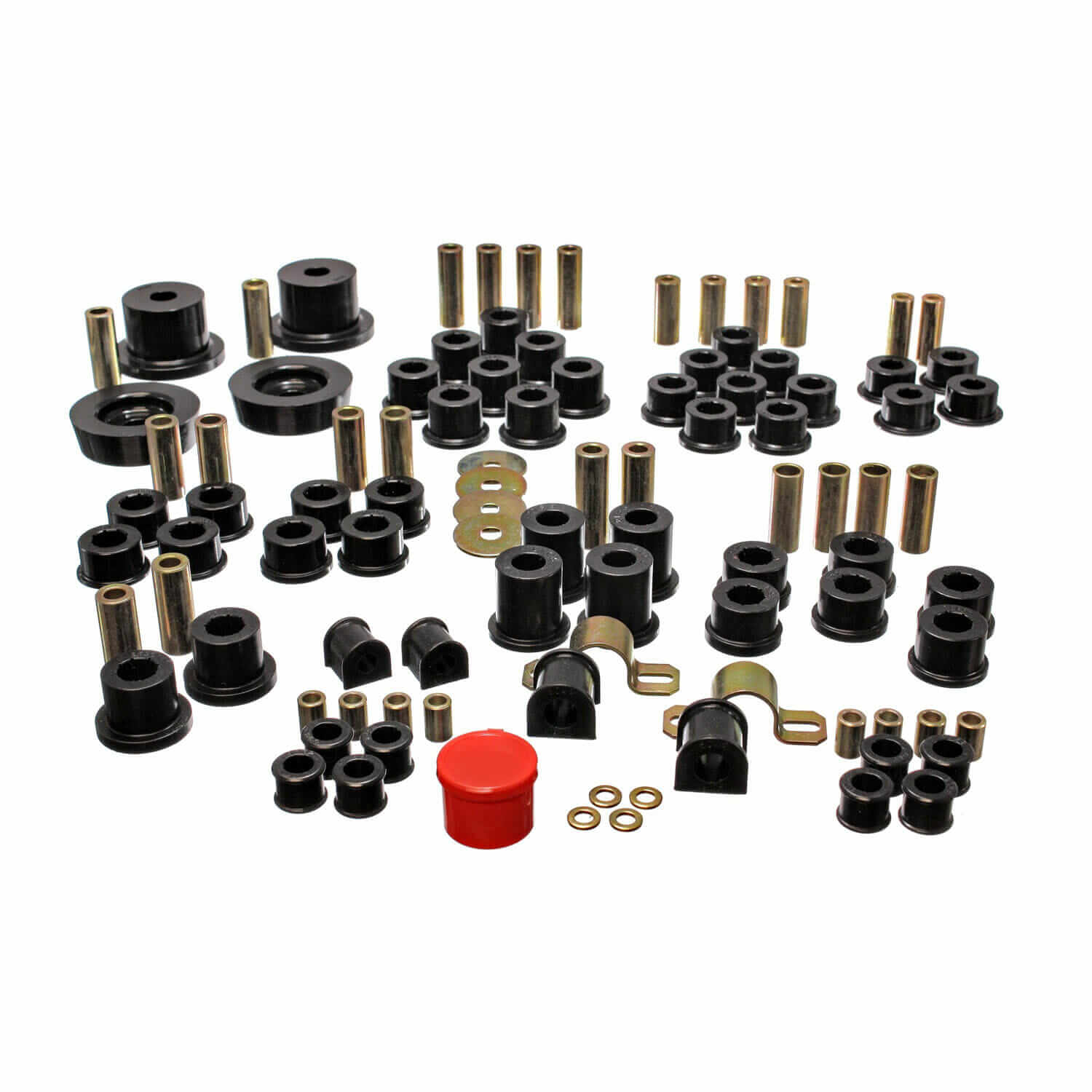

What’s in the box?

Front control arm bushing set: 11.3105

• 4x 2165 Upper control arm
• 2x 2690 Lower control arm Rear pos/front
• 2x 2691 Lower control arm Rear pos/rear
• 2x 2692 Lower control arm Front Pos/ front
• 2x 2693 Lower control arm Front Pos/ rear
• 2x 15.10.549.39 (.875″ x.500″ x 2.750″)
• 2x 15.10.472.39 (.875″ x.500″ x 2.355″)
• 4x 15.10.575.39 (.813″ x.625″ x 2.250″)
• 1x 17491 Instruction sheet

Front sway bar bushing set: 11.5102

• 2x 5042 Bushings
• 4x 8062 Bushings
• 4x 15.10.202.39 (.625″ x.393″ x.940″)
• 4x 15.03.23.39 (.702″ x.402″ x.090″)
• 2x 15.08.02.39 Mini Bracket
• 1x 17086 Instruction sheet

Rear control arm bushing set: 11.3106

• 8x 2694 Upper
• 4x 2695 Lower outer pos/ inside
• 8x 2696 Lower inner pos
• 4x 2697 Hub to upper control arm
• 4x 2699 Lower outer pos/ outside
• 4x 15.10.541.39 (.875″ x.562″ x2.270″)RLCA outer
• 4x 15.10.549.39 (.875″ x.500″ x2.750″)RLCA inner
• 4x 15.10.576.39 (.875″ x.406″ x2.200″)RUCA
• 2x 15.10.577.39 (.750″ x.406″ x2.250″)HUB
• 2x 15.03.05.39 (2.000″ x .500″ x .120″)WASHER
• 2x 15.03.12.39 (2.000″ x .562″ x .120″)WASHER
• 1x 17492 Instruction Sheet

Rear sway bar bushing set:11.5103

• 2x 5099 Rear .5″ bushing
• 4x 8062 End link bushing
• 4x 15.10.202.39 (.625″ x .393″ x .940″)
• 1x 17086 Instruction sheet

Rear Differential Bushing set:11.4101

• 2x 2698 Differential case bushings
• 2x 4247 Cross member washer bushings
• 2x 15.10.329.39 (0.875″ x0.563″ x2.500″)
• 1x 17493 Instruction sheet

Grease

• 1x 9.11113 2oz. Red Grease Tub
