Description

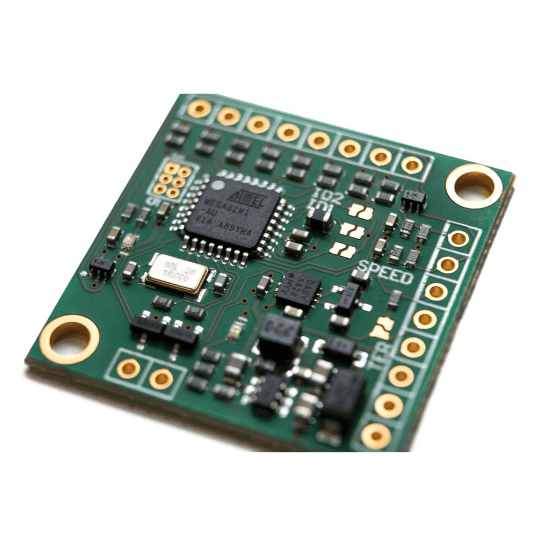

A CAN switchboard is a small circuit board that easily transfers up to 8 switch states and 8 analog signals over the CAN bus. This makes the CAN switchboard perfect for racing steering wheels or to convert steering column lever signals to CAN bus In addition, the switchboard has 4 built-in low-side outputs that can be activated with a CAN bus message. The main purpose of this board is to build custom control panels with knobs, rotary switches and indicators.

The CAN switchboard is designed to work with EMU BLACK and PMU but can also be used with other devices with custom configurable CAN bus inputs.

Key features

• CAN BUS 2.0B
• 500 or 1000kbps, user selectable
• different CAN ID and CAN frame structures can be selected,
• only 25x25mm in size,
• 8 switch inputs (switched to ground)
• 8 analog inputs / rotary switch inputs, 0-5V, 10bits
• 4 low side outputs (0.5A, resistive and inductive loads)
• 6-22V power supply
• +5V output for powering rotary switches, sensors and potentiometers
• firmware upgrade over the CAN bus
