Description

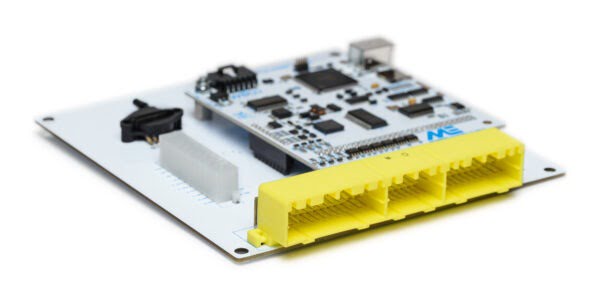

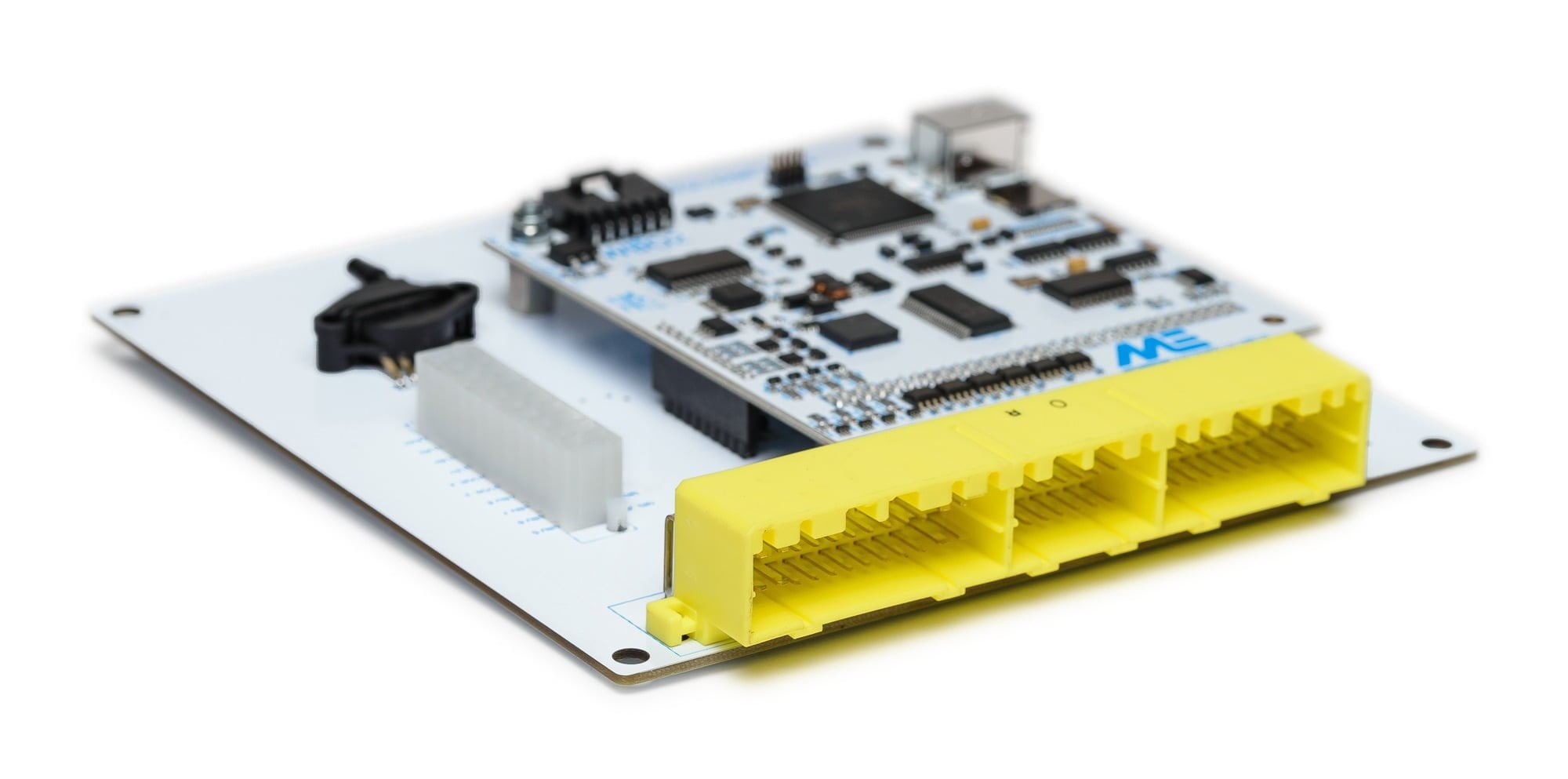

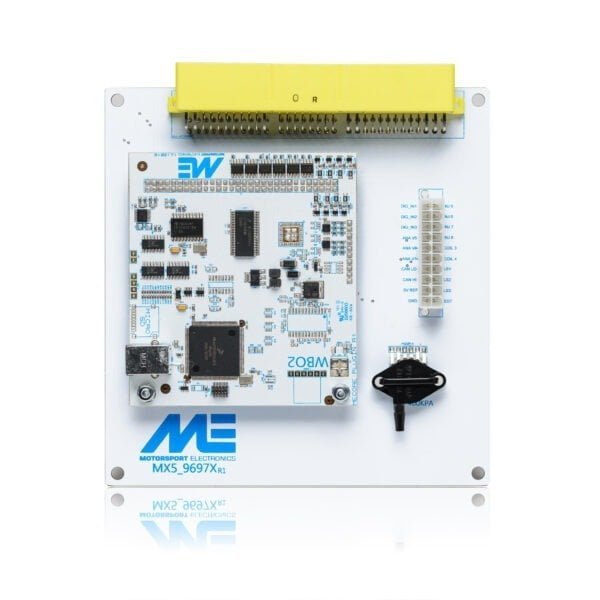

The ME221 MX-5 PnP is the latest generation plug-n-play engine management for the MX-5 / Miata Mk1 from year 1996 to 1998 1.6/1.8 VIDEO INSTALL GUIDE This ME221 supports both the 1.6 and 1.8 variants and also fits into the original housing so that everything can be concealed in the original location. The only modification is a vacuum hose that needs to go from the ECU to the engine bay so it can be connected to the intake manifold.

• Used ME221 ECU Core (Freescale Automotive Processing Power)
• Support for all OEM sensors
• True Plug-n-Play solution : Support for variable as well as on/off throttle sensor
• 16×16 Fuel and Ignition Tables (with dual table switching)
• VE-based fuel algorithms
• Any type of high resistance injector
• DSP Knock/Detonation Control
• Built-in 21psi MAP sensor
• Closed Loop Boost Control
• Launch Control
• Full Sequential on 1.8 engines
• Regular software updates
• Uses the powerful MEITE software
• An open approach to firmware/software features.
• Supplied with basemaps developed on a dyno. Both turbo and n/a.
• For disassembly of the original ecu and assembly of the ME221, follow the manual.
