Description

The ME221 MX-5 PnP is the latest generation plug-n-play engine management for the MX-5 / Miata Mk2 from year 1999 to 2000 1.6/1.8

VIDEO INSTALL GUIDE

This ME221 supports both the 1.6 and 1.8 variants, and in the process it also just fits into the original housing so everything can be properly concealed in its original location. The only modification is a vacuum hose that needs to go from the ECU to the engine bay so it can be connected to the intake manifold.

• Used ME221 ECU Core (Freescale Automotive Processing Power)
• Support for all OEM sensors
• True Plug-n-Play solution : Support for variable as well as on/off throttle sensor
• 16×16 Fuel and Ignition Tables (with dual table switching)
• VE-based fuel algorithms
• Any type of high resistance injector
• DSP Knock/Detonation Control
• Built-in 21psi MAP sensor
• Closed Loop Boost Control
• Launch Control
• Full Sequential on 1.8 engines
• Regular software updates

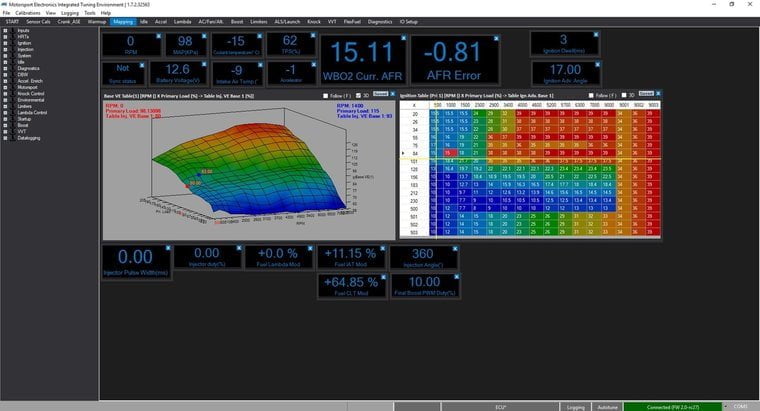

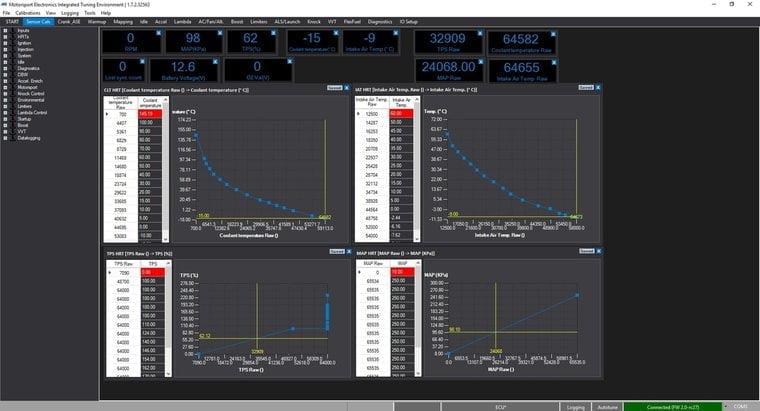

• Uses the powerful MEITE software
• An open approach to firmware/software features.
• Supplied with basemaps developed on a dyno. Both turbo and n/a.
• For disassembly of the original ecu and assembly of the ME221, follow the manual.
